Why Detail Matters in Steel Fabrication

In steel fabrication, small errors cause big problems. A few millimetres off in cutting or hole positioning can lead to rework, delayed schedules, and unsafe structures. Every step, from material layout to final assembly, needs precision. That is why good fabricators treat detail control as a priority, not an option.

How Yumisteel Handles Every Detail？

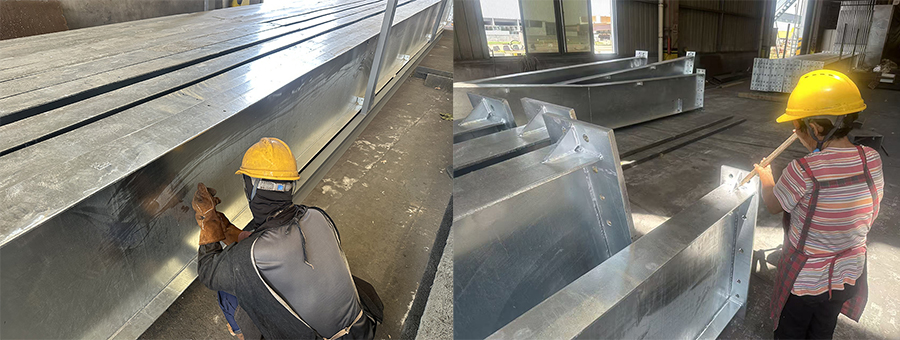

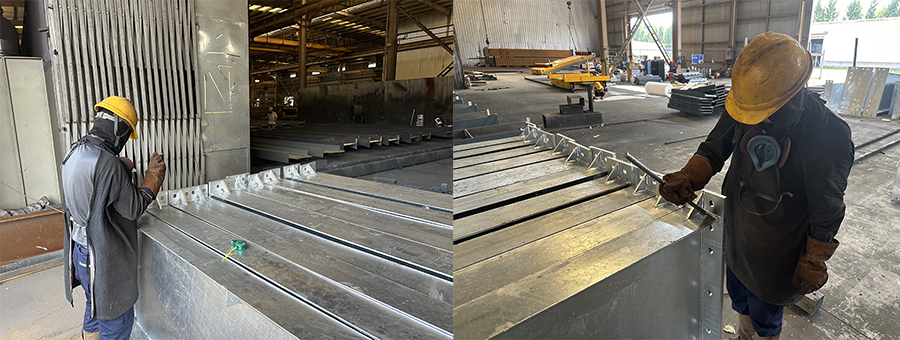

Yumisteel runs daily quality checks at every workstation. They inspect raw steel before cutting, measure weld quality and hole positions during production, and test sandwich panels for bonding strength. Any part that fails is reworked or rejected immediately. This constant inspection means quality is built in at every stage, not just checked at the end.

Key Considerations in Steel Structure Fabrication

Proper steel fabrication requires strict control across several critical areas.

First, cutting and blanking must follow precise layout principles: operators should use surplus materials first, cut large parts before smaller ones, and leave a 20mm allowance on flange plates and web plates for assembly adjustments. After cutting, all slag and burrs must be removed, and each part marked clearly with project and part numbers, avoiding weld areas.

Second, bolted connections demand careful hole preparation. Holes should be drilled full size where possible; punching is only acceptable for thinner plates and must be by reaming to the required diameter.

Third, alignment and levelling must be done promptly after erection, with temporary bracings in place until permanent connections secure the structure.

These practices are not optional; they are essential for achieving the tolerances and load capacities that engineers specify.

The Yumisteel Difference in Detail Control

Yumisteel combines daily inspections with full project support. They verify shop drawings, design secure packaging for shipping, and use 3D loading simulations for export orders. This attention to detail means every component fits perfectly on site. That is why engineers trust Yumisteel for steel that is reliable, precise, and built to last.
